Products - MRO-TEK

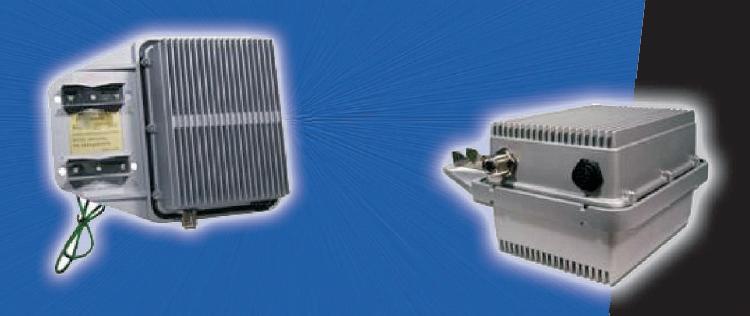

Canna 2410gM
Broadband Wireless Outdoor Solutions



Features


•  Wireless LAN IEEE802.11b/g compliant.
•  Solid housing provides protection against rigorous weather conditions IP68 compliant.
•  Four operating modes support: AP ,Wireless Client Repeater and Wireless Bridge.
•  Strong network security with 64/128/152-bit WEP encryption and WPA.
•  One detachable N-type male connectors can connect to external high gain antenna for expanding connection distance.
•  Provides RSSI indication for AP, Repeater and Wireless Bridge.
•  Power over Ethernet design IEEE802.3af compliant.

  Download Information

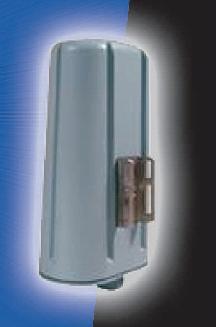

Canna 24005g
Broadband Wireless Outdoor Solutions



Features


•  Wireless LAN IEEE802.11b/g compliant.
•  Solid housing provides protection against rigorous weather conditions IP68 compliant.
•  Four operating modes support: AP ,Wireless Client Repeater and Wireless Bridge.
•  Strong network security with 64/128/152-bit WEP encryption and WPA.
•  Provides RSSI indication for AP, Repeater and Wireless Bridge.
•  Power over Ethernet design IEEE802.3af compliant.

  Download Information

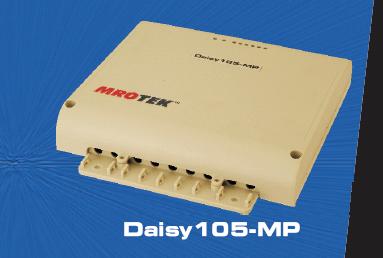

Daisy105-MP

Power-over-Ethernet extender



Features


•  Wire-speed switching device.
•  2 nos - PoE network ports & 3 nos - PoE user ports (10/100Base-T).
•  Short-circuit protection on all ports.
•  Power surge protection.
•  Power Enable / Disable on all ports.
•  Local DC Power feed option available.
•  IP64 compliant weather proof enclosure.
•  Secured data access across user ports.
•  Management traffic on tagged VLANs.
•  Upto 5W power per PoE user port.
•  LITEview NMS software on Linux platform.
•  Data and power management on all ports.
•  Periodic update of port status to NMS.

  Download Information

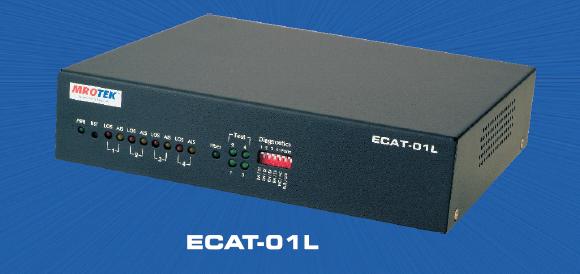

ECAT-01L

TDM Over Ethernet Access Multiplexer



Features


•  4E1channels over Fast Ethernet fiber port.
•  Link and port status of local and remote units.
•  DIP switches for loopback diagnostics.
•  Alarm monitoring Indication.
•  Built-in auto-ranging AC-DC power supply.
•  Supports multimode or single mode fiber.
•  SC connector for Optical network port.
•  Support for long haul transmission upto 100Kms.
•  Conforms to ITU G.703, G.823, G.824, GR-499 core jitter requirements and IEEE Ethernet standards.

  Download Information

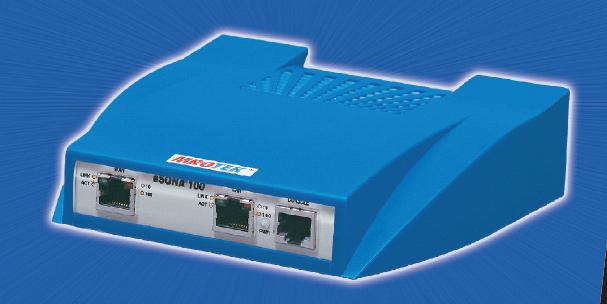

eSONA 100

Intelligent Wire-speed Bandwidth Manager



Features


•  Auto MDI-I/MDI-X on 10/100 Mbps Ethernet Port (RJ- 45).
•  10/100BASE-T or 100BASE-FX for WAN.
•  Ethernet bandwidth provisioning upto100Mbps, 1Kbps step.
•  Upto 88 bidirectional queues using layer L2-L4 based classification for bandwidth management.
•  Traffic Classification based on TCP/UDP port, IP Address, IP Range, IP Subnet, VLAN tag and MAC Address.
•  Time of Day / Day of week implementations for Policies.
•  Class specific statistics available.
•  Metering information on the actual bandwidth consumed.
•  CLI, SNMP and Telnet based access for easy management.
•  Dual firmware support.
•  Simple Backup and Restoration of configuration.

  Download Information

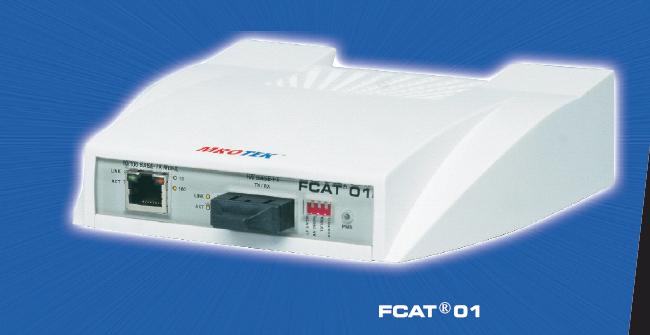

FCAT 01

Fast Ethernet Media converter



Features


•  Single channel stand-alone media converter.
•  10/100BASE-T to 100BASE-FX media conversion.
•  Auto MDI-I/MDI-X copper Ethernet port.
•  DIP switch configuration for copper Ethernet port.
•  SC connector for 100BASE-FX fiber port.
•  Link, Activity & Speed LED indications.
•  Supports Multimode, Single mode & Single fiber.
•  Long haul transmission upto 100 kms support.
•  LFP (Link Fault Pass through) allows the fiber failure to be propagated to the copper port.

  Download Information

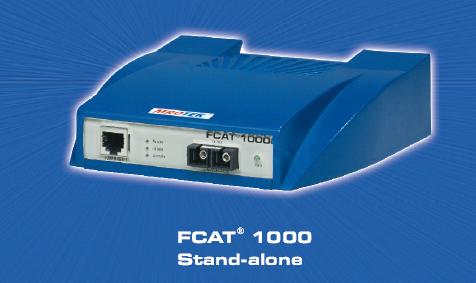

FCAT 1000

Gigabit Ethernet Media Converter



Features


•  Single channel stand-alone media converter.
•  Media Conversion from 1000BASE-T to 1000BASE-X.
•  Auto MDI-I/MDI-X copper Ethernet port.
•  RJ-45 connector for 1000BASE-T port.
•  SC connector for 1000BASE-X port.
•  Link & Activity LED indications.
•  Supports multi mode or single mode fiber.
•  Single mode option available at 10km & 40km.
•  Single mode option available at 10km & 40km.

  Download Information

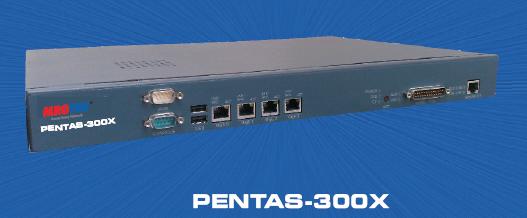

PENTAS-300X

High performance Managed Edge Router



Features


•  120kpps performance.
•  4 Onboard 10/100/1000Base Tx Ethernet Interfaces.
•  Fixed WAN slots.
•  Onboard Aux, Console & USB ports.
•  Inbuilt 256 MB Flash Memory.
•  Inbuilt 512 MB DRAM.
•  WAN interface options include E1/V.35/ISDN.
•  Static Routing.
•  Dynamic Routing : RIP v1& v2, BGPv4, OSPFv2.
•  Stateful Firewall.
•  IPsec & SSL VPN's.
•  IDS/IPS Customizable database.
•  ACL's.
•  Inbuilt 512 MB DRAM.
•  Web, URL & Content Filtering.
•  Graceful Restart, Safe Rollback & Fail-over support.

  Download Information
